Neuber Correction Theory

Overview

The Neuber correction is a method used to account for plastic deformation when elastic stress analysis gives unrealistic results. When stresses exceed the yield strength, elastic analysis overestimates the actual stress because it doesn't account for plastic yielding.

Mathematical Foundation

1. Neuber's Rule

Neuber's rule states that the product of stress and strain remains constant:

\[ \sigma \cdot \varepsilon = \frac{\sigma_e^2}{E} \]

Where: - \(\sigma\) = actual (corrected) stress - \(\varepsilon\) = actual strain
- \(\sigma_e\) = elastic stress (from linear elastic analysis) - \(E\) = Young's modulus

2. Ramberg-Osgood Material Model

The material's stress-strain behavior is modeled using the Ramberg-Osgood equation:

\[ \varepsilon = \varepsilon_e + \varepsilon_p = \frac{\sigma}{E} + \varepsilon_0 \left(\frac{\sigma}{\sigma_y}\right)^n \]

Where: - \(\varepsilon_e\) = elastic strain - \(\varepsilon_p\) = plastic strain - \(\varepsilon_0\) = yield offset strain (typically 0.002) - \(\sigma_y\) = yield strength - \(n\) = Ramberg-Osgood hardening exponent

3. Hardening Exponent Calculation

The hardening exponent \(n\) is calculated from material properties:

\[ n = \frac{\ln(\varepsilon_p^u) - \ln(\varepsilon_0)}{\ln(\sigma_u/\sigma_y)} \]

Where: - \(\varepsilon_p^u = \varepsilon_u - \sigma_u/E\) = plastic strain at ultimate tensile strength - \(\varepsilon_u\) = fracture strain - \(\sigma_u\) = ultimate tensile strength

4. Intersection Solution

The corrected stress is found by solving the intersection of: 1. Neuber hyperbola: \(\sigma \cdot \varepsilon = \sigma_e^2/E\) 2. Ramberg-Osgood curve: \(\varepsilon = \sigma/E + \varepsilon_0(\sigma/\sigma_y)^n\)

Important Implementation Detail: The intersection is calculated regardless of the yield strength. This means that for elastic stresses around or below the yield strength, the correction may result in stresses below yield (overcorrection). This approach is used for numerical stability to avoid discontinuities in the solution.

This is solved iteratively using Newton-Raphson method:

\[ \sigma_{i+1} = \sigma_i - \frac{f(\sigma_i)}{f'(\sigma_i)} \]

Where: - \(f(\sigma) = \varepsilon_{RO}(\sigma) - \varepsilon_{Neuber}(\sigma)\) - \(f'(\sigma) = \frac{d\varepsilon_{RO}}{d\sigma} - \frac{d\varepsilon_{Neuber}}{d\sigma}\)

Physical Interpretation

1. Elastic Analysis: Assumes linear elastic behavior, overestimating stress
2. Plastic Correction: Accounts for material yielding, reducing the stress
3. Intersection Point: The corrected stress-strain state where both Neuber's rule and material behavior are satisfied
4. Numerical Stability: Continuous solution across all stress ranges, avoiding discontinuities at yield

Visual Example

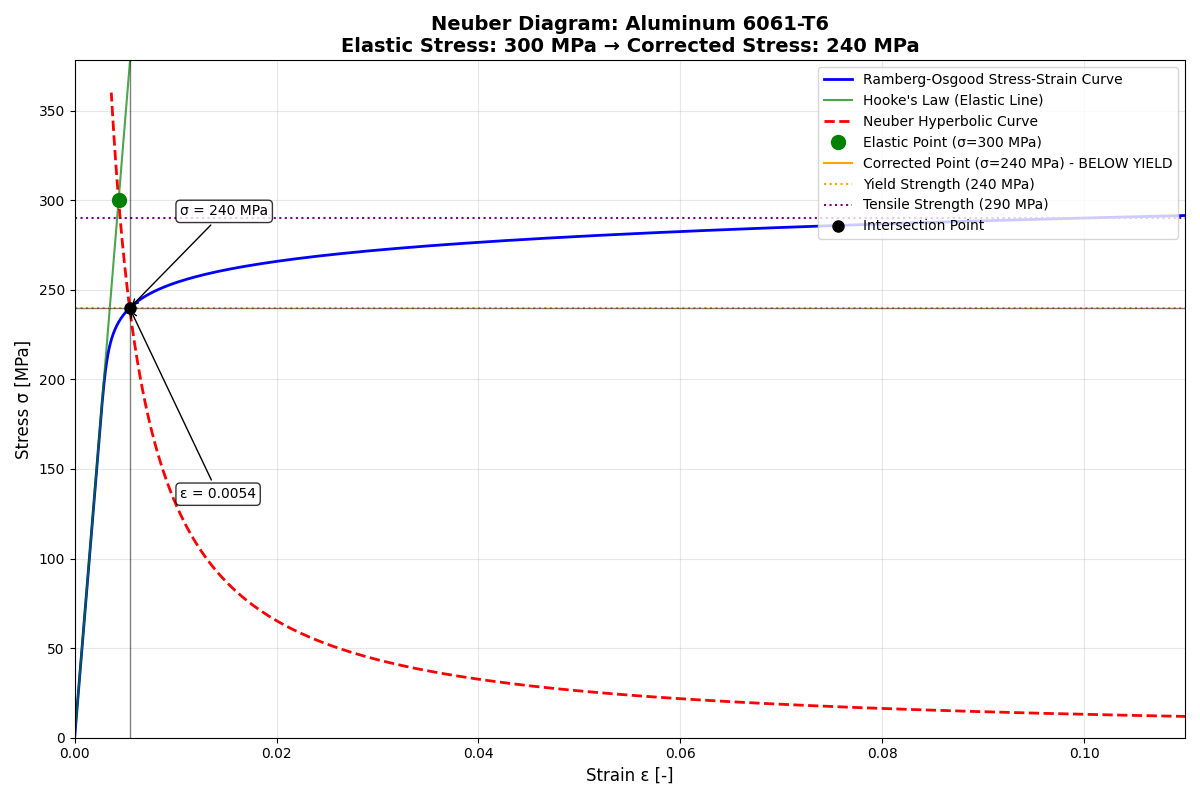

The following diagram shows how the Neuber correction works for Aluminum 6061-T6 with an elastic stress of 500 MPa:

The intersection point between the Neuber hyperbola (red dashed) and the Ramberg-Osgood curve (blue solid) gives the corrected stress and strain values. The Hooke's law line (green) shows what the elastic analysis would predict, while the actual material behavior follows the Ramberg-Osgood curve.

Note: When the corrected stress falls below the yield strength, it is flagged on the plot (orange marker) to indicate overcorrection. This is acceptable for numerical stability and is particularly useful when analyzing FEA results that may span both elastic and plastic regions.

Overcorrection Example

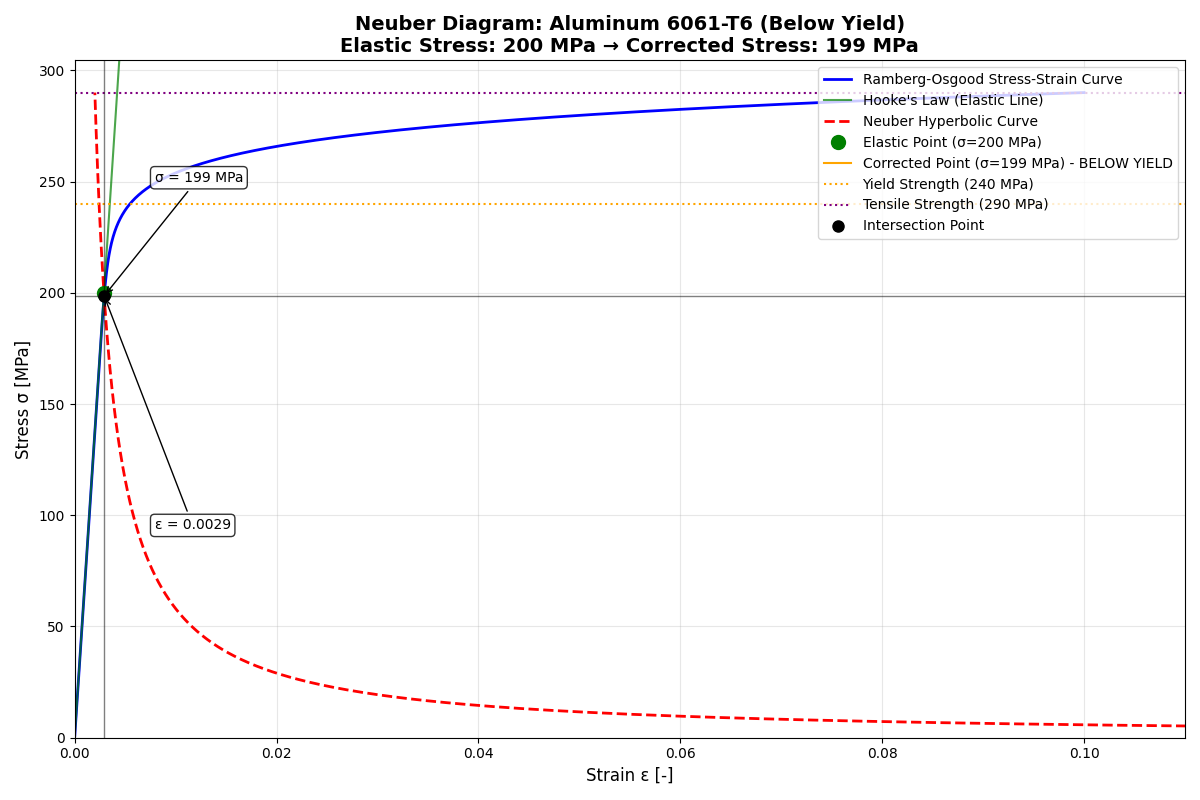

Here's an example showing the overcorrection behavior when the elastic stress is below the yield strength (200 MPa):

In this case, the elastic stress (200 MPa) is below the yield strength (240 MPa), but the Neuber correction still calculates the intersection point. The corrected stress (orange marker) falls below the yield strength, demonstrating the overcorrection behavior. This continuous solution approach ensures numerical stability across all stress ranges.

Application

Neuber correction is essential whenever you have non-linear material behavior and need to account for it in your analysis. It is primarily used to estimate the real stress when you have higher stresses than the yield strength, but the continuous solution approach makes it suitable for analyzing results across the entire stress range.

Common Applications

• Finite Element Analysis (FEA): Correcting elastic FEA results when stresses exceed yield
• Fatigue Analysis: More accurate stress predictions for fatigue life calculations
• Structural Design: Validating designs that may experience plastic deformation
• Material Testing: Analyzing test data with plastic yielding
• Stress Concentration: Correcting stress concentration factor calculations

When to Apply

Apply Neuber correction when: - Elastic stresses exceed the material's yield strength (primary use case) - You need accurate stress predictions for fatigue analysis - Your material exhibits significant plastic deformation - You want to avoid over-conservative designs based on elastic analysis - You need a continuous solution across elastic and plastic regions

Limitations

You should be aware that Neuber's rule is a simplification of non-linear material behavior. It is only valid for monotonic loading conditions and assumes proportional loading. It also requires accurate material properties. It may not capture complex loading histories.

Key Limitations

• Monotonic Loading Only: Not suitable for cyclic or variable loading
• Proportional Loading: Assumes stress ratios remain constant
• Material Accuracy: Requires precise material property data
• Geometric Simplification: May not capture complex stress distributions
• Loading History: Does not account for previous plastic deformation
• Overcorrection Below Yield: May overcorrect stresses around/below yield strength for numerical stability

References

• Neuber, H. (1961). Theory of stress concentration for shear-strained prismatical bodies with arbitrary nonlinear stress-strain law. Journal of Applied Mechanics, 28(4), 544-550.
• This implementation is based on: Neuber's rule for stress concentration analysis
